Load Arresters

  • Quick fall arrest ability
  • Shock absorbing
  • Self-retraction

Certification:

ATEX 2014/34/EU

ATEX

In Stock

PRODUCT SPECIFICATION

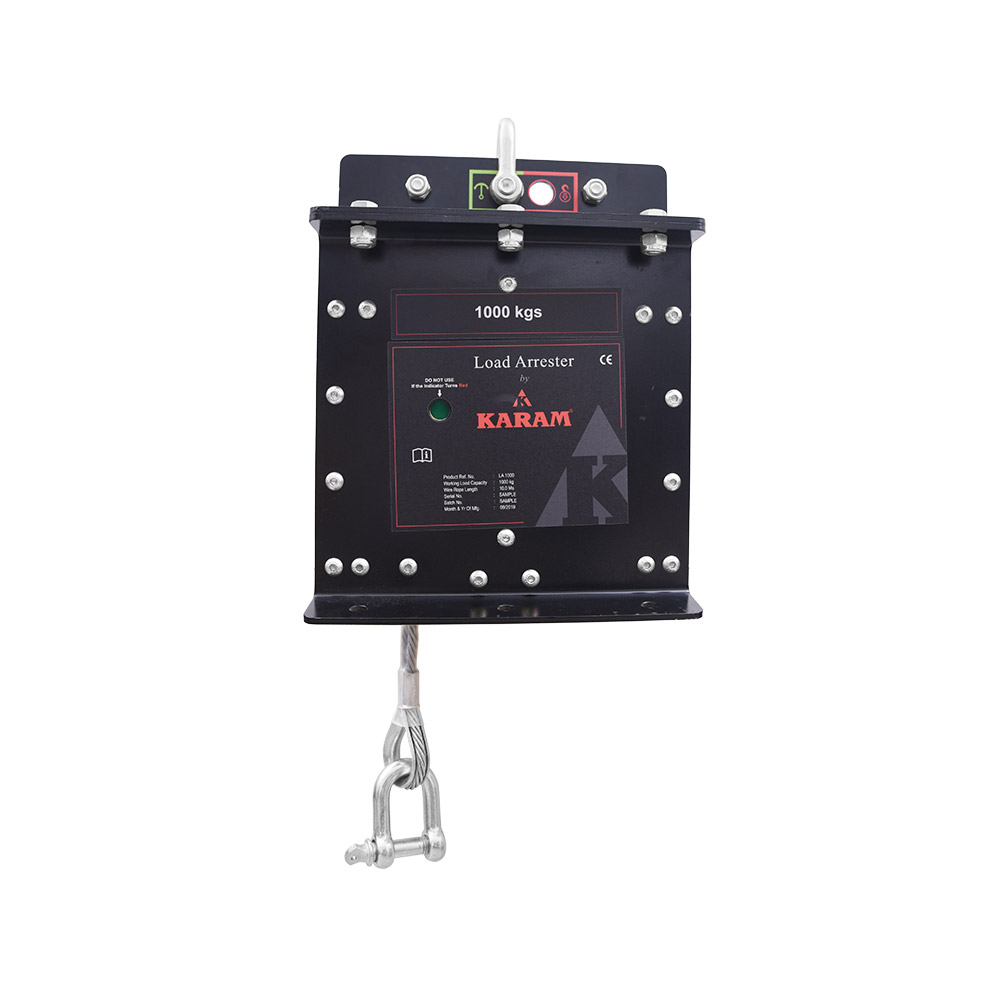

KARAM provides a vast range of cable load arresters with different load capacities, which are used to stop the fall of a load (basketball hoop, ramp lighting for scenic, industrial machine etc.)

Load arrester stop the fall of load for a short distance in case of the following situations:

  • Break of chain or cable for hoisting the load.
  • Failure of the retaining elements of the load.
  • Cable load arresters are not PPE.
  • Conforms to machine directive 2006/42/EC.
  • These are backup safety system which arrest the fall of a load in the event of the primary systems failing.
  • It reduces the risk of equipment damage and protects personnel in and around the danger zone.
  • KARAM range of load arresters is available to protect loads ranging from 200kg to 1000kg with a variety of wire rope lengths based on the six model sizes.
  • These can also be used in conjunction with other arresters of the same size to achieve a desired working load capacity.

Warranty: 6 months from the date of invoice against any manufacturing defects.

Length of Cable 16m
Max Load Capacity 1000kg
Casing Material High strength Alloy Steel
Wire Rope Material and Dia Stainless steel wire rope of dia 8.0mm
Minimum Breaking Strength of Load Arrester Assembly >13kN
