SA09- Type A Anchor

Home/Fall Protection Equipments/Anchorages/SA09- Type A Anchor

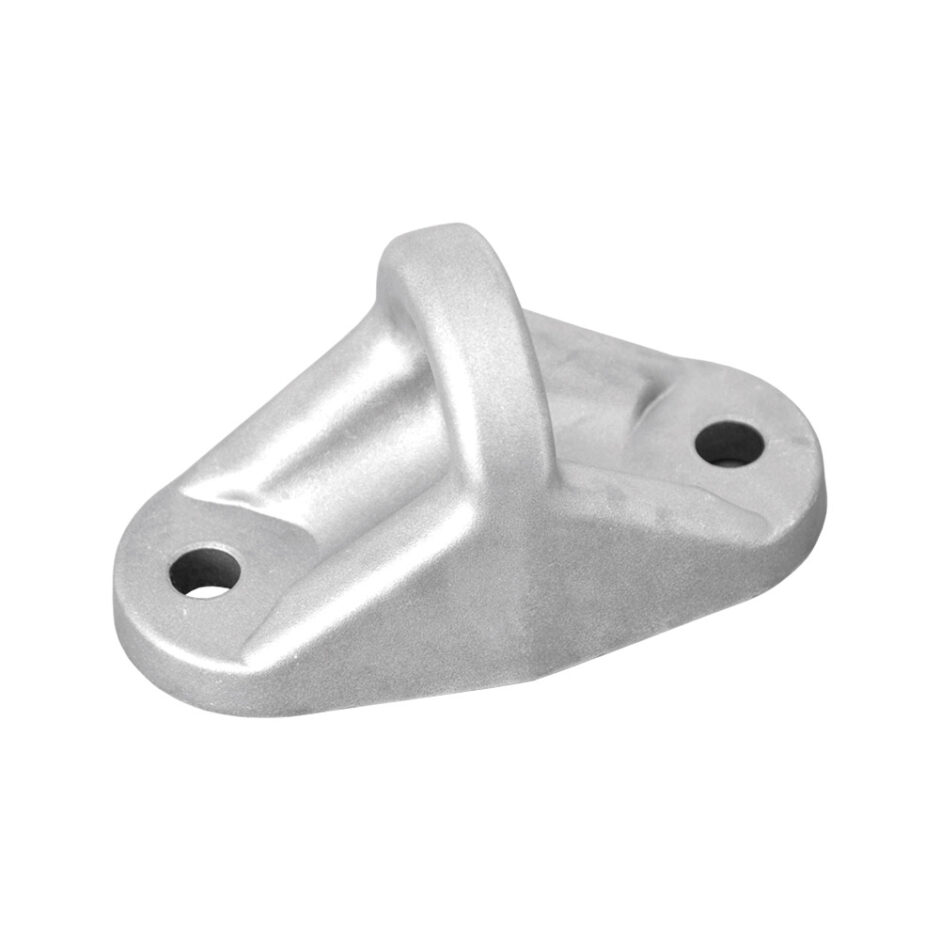

Aluminium Point Anchor

  • Compact and highly corrosion resistant
  • Can be bolted on any structure with the help of 2 screw-bolts
  • Tested to withstand the impact load in all the 3 axes, providing the highest level of safety
  • It can be bolted on concrete structures that have a minimum width of 125mm and metal structures using suitable fasteners

Certification:

Conforms to EN 795:2012 Type A, ANSI Z359.1-2007, TS16415:2013 Type A (for up to 3 users) and Certified to IS 3521(Part 7):2021

CE  ISI ANSI

In Stock

Categories:,
PRODUCT SPECIFICATION
Download Specifications

A type anchor device with one or more stationary anchor points that require a structural anchor or fixing element to be fixed to the structure. This type of anchor is usually small, and may or may not be removed from the supporting structure due to being fixed, such as with rivets, studs, screws, welds or resin bonding.

Warranty: 1 Year from the date of invoice against any manufacturing defects.

Material Aluminium Alloy
Minimum Breaking Strength 23kN
Finish Natural silver/colored anodized
Weight 308 Grams
