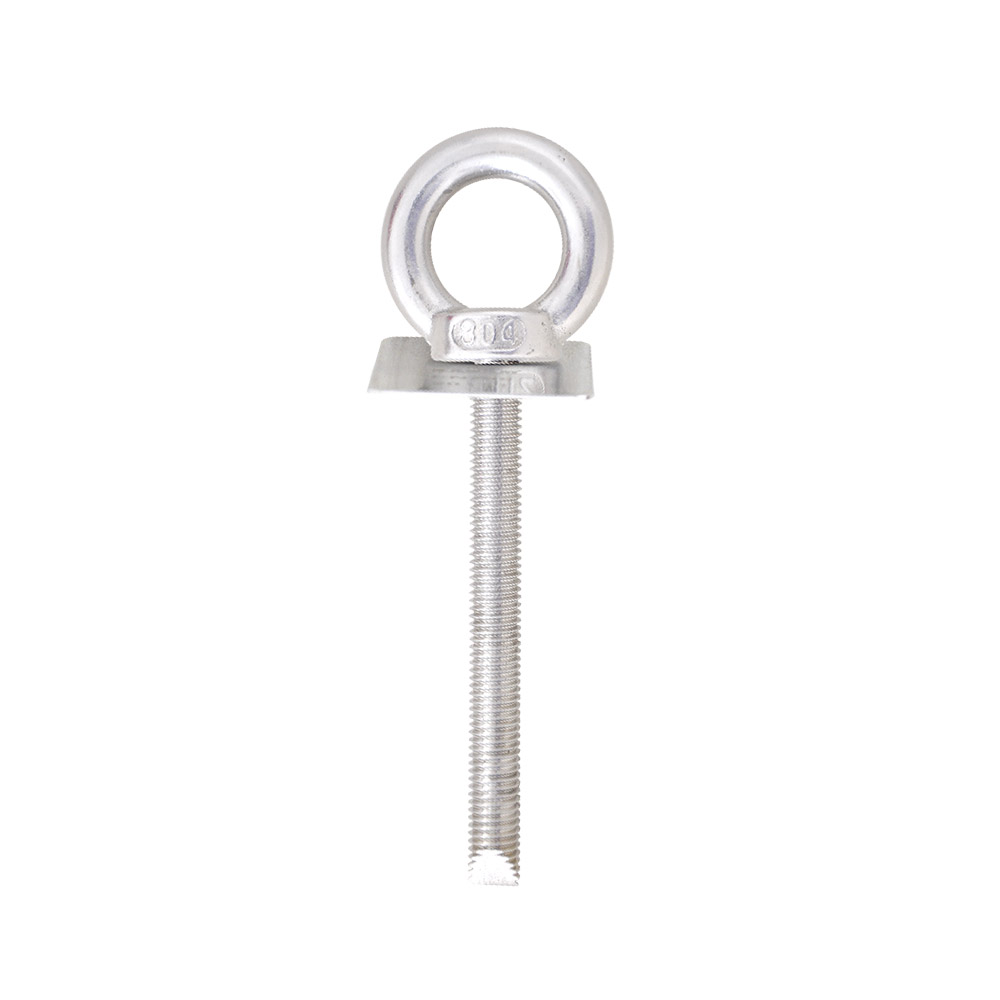

Stainless Steel Chemical Point Anchor

  • For fastening into concrete
  • Is used with adhesive capsule 10 HVU M12 x 110 code: 256693
  • Drilling dia recommended for installation- 14mm and depth-110mm
Certification:

Conforms to EN 795:2012 Type A and Certified to AS/NZS 5532:2013, IS 3521(Part 7):2021

CE  ISI ASNZS

In Stock

PRODUCT SPECIFICATION

A type anchor device with one or more stationary anchor points that require a structural anchor or fixing element to be fixed to the structure. This type of anchor is usually small, and may or may not be removed from the supporting structure due to being fixed, such as with rivets, studs, screws, welds or resin bonding.

Warranty: 1 Year from the date of invoice against any manufacturing defects.

Material Alloy Steel
Minimum Breaking Strength 23kN
Finish Polished
Weight 300 Grams
